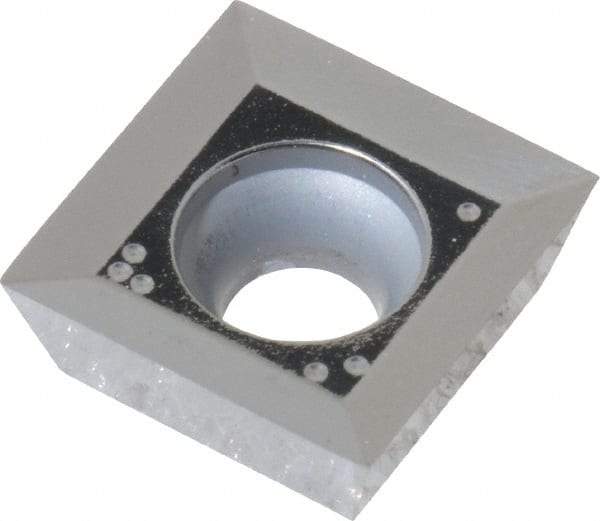

Tungaloy - SDGT1204 AJ Grade TH10 Carbide Milling Insert - Uncoated, 0.187" Thick, 1/2" Inscribed Circle, 0.031" Corner Radius
Item #: 78070307
Brand: Tungaloy
Model #: 6812503
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SDGT |
| Insert Size | 1204 |
| Material | Carbide |
| Material Grade | C2/C3 |
| Manufacturer's Grade | TH10 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Relief Angle | 15.000 |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | AJ |
| ISO Number | SDGT1204PDFR-AJ |
