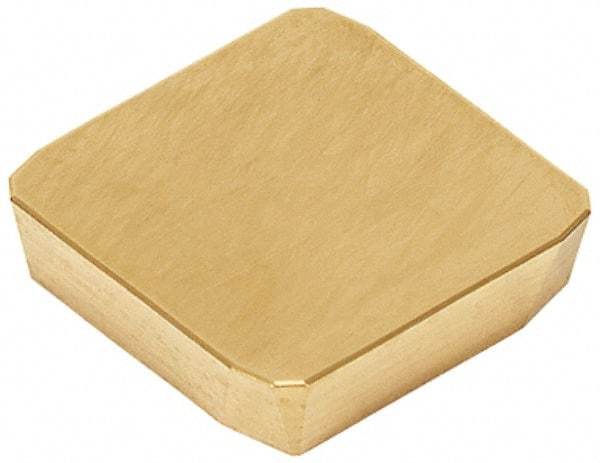

Tungaloy - SPKN42 TR Grade FPX Ceramic Milling Insert - Uncoated, 1/8" Thick, 1/2" Inscribed Circle, 1mm Corner Radius
Item #: 78069622
Brand: Tungaloy
Model #: 6807118
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | SPKN |
| Insert Size | 42 |
| Material | Ceramic |
| Material Grade | C2/C3/C4 |
| Manufacturer's Grade | FPX |
| Coating | Uncoated |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (mm) | 1.00 |
| Relief Angle | 11.000 |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | TR |
