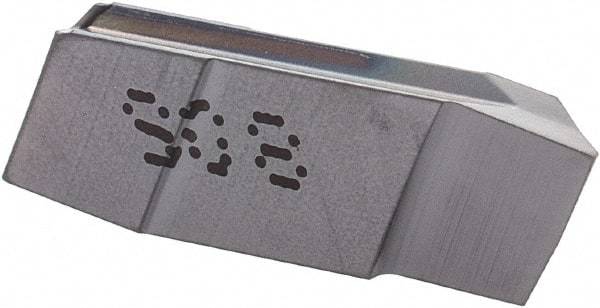

Iscar - 235GIPM Grade IC908, 2.35mm Cutting Width Carbide Grooving Insert - 1mm Max Depth of Cut, Neutral, 0.05mm Corner Radius, TiAlN Finish
Item #: 78040763
Brand: Iscar
Model #: 6499426
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIPM |
| Insert Size | 235 |
| Material | Carbide |
| Cutting Width (mm) | 2.35 |
| Cutting Width (Decimal Inch) | 0.0925 |
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Material Grade | C1/C2/C6/C7 |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.05 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.6024 |
| Rake Angle | 6 |
| Rake | Positive |
