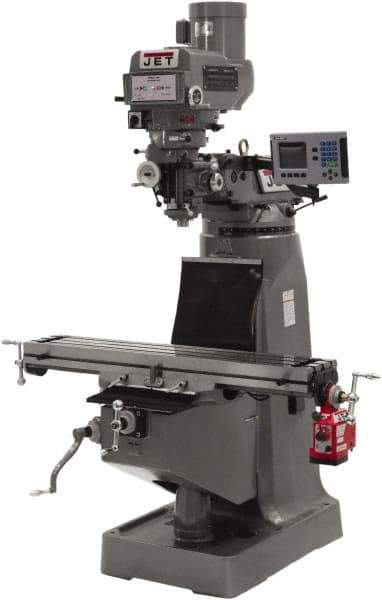

Jet - 10" Table Width x 49" Table Length, Variable Speed Pulley Control, 1 Phase Knee Milling Machine - R8 Spindle Taper
Item #: 77723161
Brand: Jet
Model #: 690179
Exact Tooling IR#: 04
Features and Benefits
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase lines.
| Product Specifications | |
|---|---|
| Spindle Speed Control | Variable Speed Pulley |
| Table Length (Inch) | 49 |
| Table Width (Inch) | 10 |
| Phase | 1 |
| Longitudinal Travel (Decimal Inch) | 34.0000 |
| Cross Travel (Decimal Inch) | 12.0000 |
| Knee Travel (Decimal Inch) | 16.0000 |
| Number of Spindle Speeds | Variable |
| Maximum Spindle Speed (RPM) | 4200.00 |
| Minimum Spindle Speed (RPM) | 60.00 |
| Spindle Taper Size | R8 |
| Overall Length (Decimal Inch) | 63.0000 |
| Overall Height (Inch) | 85 |
| Overall Height (Decimal Inch) | 85.0000 |
| Overall Depth (Decimal Inch) | 65.5000 |
