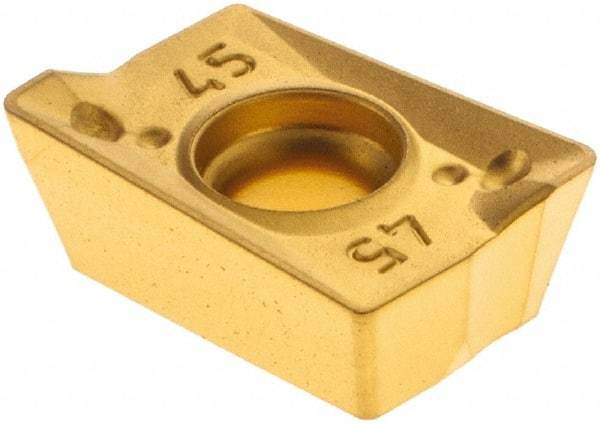

Kennametal - ADKT1505 45 Grade X500 Carbide Milling Insert - TiN/TiC/TiN Finish, 0.219" Thick, 0.38" Inscribed Circle
Item #: 77694651
Brand: Kennametal
Model #: 5666280
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ADKT |
| Insert Size | 1505 |
| Material | Carbide |
| Manufacturer's Grade | X500 |
| Coating | TiN/TiC/TiN |
| Width (Decimal Inch) | 0.3800 |
| Inscribed Circle (Decimal Inch) | 0.3800 |
| Thickness (Decimal Inch) | 0.2190 |
| Relief Angle | 15.000 |
| Shape | Parallelogram |
| Chipbreaker | 45 |
