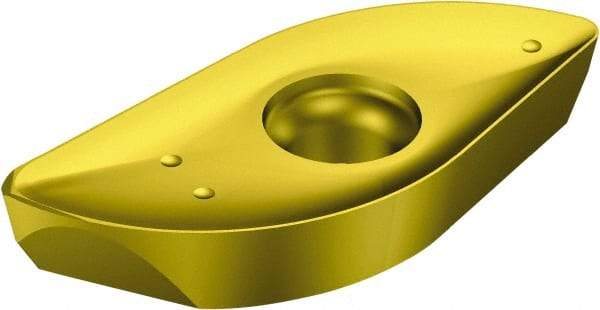

Sandvik Coromant - RA21619T3 MM Grade 2040 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 5/32" Thick
Item #: 77647907
Brand: Sandvik Coromant
Model #: 5740212
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RA216 |
| Insert Size | 19T3 |
| Material | Carbide |
| Manufacturer's Grade | 2040 |
| Coating | TiCN/Al2O3/TiN |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Hole Diameter (mm) | 4.00 |
| Hole Diameter (Decimal Inch) | 0.1575 |
| Rake Angle | 0 |
| Rake | Neutral |
| Coating Process | CVD |
| Shape | Ball Nose |
| Insert Hand | Right Hand |
| Chipbreaker | MM |
| Cutting Edge Style | Negative Land/ER Treated |
| Manufacturers Catalog Number | 5740212 |
| ISO Number | RA216-19 T3 M-M 2040 |
