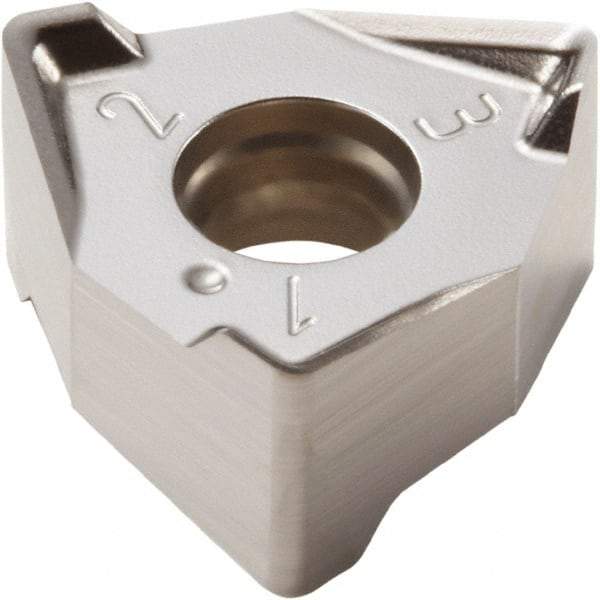

Seco - XNEX080608 M08 Grade H25 Carbide Milling Insert - Uncoated, 1/4" Thick, 0.491" Inscribed Circle
Item #: 77597862
Brand: Seco
Model #: 69463
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XNEX |
| Insert Size | 080608 |
| Material | Carbide |
| Material Grade | Micrograin |
| Manufacturer's Grade | H25 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.4910 |
| Inscribed Circle (Decimal Inch) | 0.4910 |
| Thickness (Decimal Inch) | 0.2500 |
| Relief Angle | 0.000 |
| Shape | Trigon |
| Chipbreaker | M08 |
| ISO Number | XNEX080608R-M08 |
