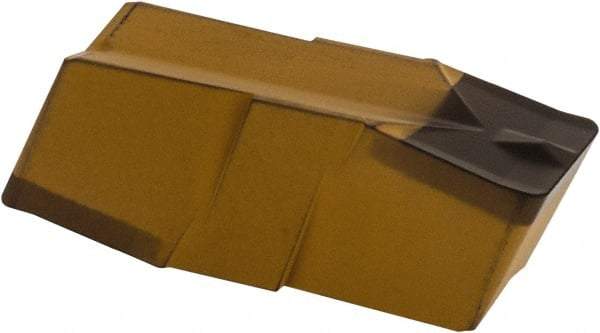

Iscar - 555E055GIP E Grade IC8250, 5.55mm Cutting Width Carbide Grooving Insert - 3.3mm Max Depth of Cut, Neutral, 0.55mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 77575892
Brand: Iscar
Model #: 6405262
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIP |
| Insert Size | 555E055 |
| Material | Carbide |
| Cutting Width (mm) | 5.55 |
| Cutting Width (Decimal Inch) | 0.2185 |
| Maximum Depth of Cut (mm) | 3.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.1300 |
| Manufacturer's Grade | IC8250 |
| Coating | TiCN/Al2O3/TiN |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Chipbreaker | E |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Corner Radius (mm) | 0.55 |
| Corner Radius (Decimal Inch) | 0.0217 |
| Coating Process | PVD |
| Overall Length (mm) | 15.30 |
| Overall Length (Decimal Inch) | 0.6024 |
| Series | Cut Grip |
