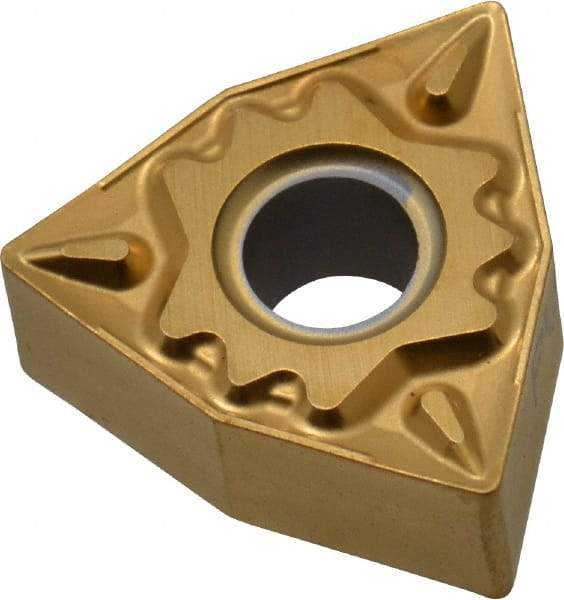

Kyocera - WNMG331 HQ Grade PV90 Cermet Turning Insert - TiN Finish, 80° Trigon, 3/8" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 77496784
Brand: Kyocera
Model #: 8804337
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | WNMG |
| Insert Size | 331 |
| Material | Cermet |
| Length (Decimal Inch) | 0.2360 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | PV90 |
| Coating | TiN |
| Material Grade | C6/C7 |
| Chip Breaker | HQ |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Rake | Positive |
| Rake Angle | 15 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Included Angle | 80 |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Shape | Trigon |
