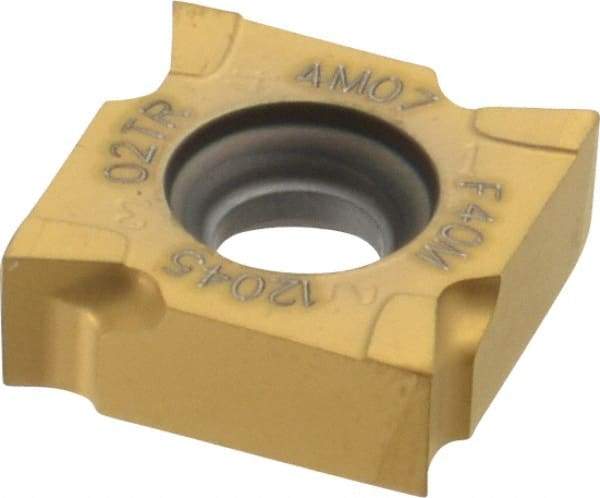

Seco - SNHQ1204502 M07 Grade F40M Carbide Milling Insert - TiAlN/TiN Finish, 0.177" Thick, 1/2" Inscribed Circle, 0.008" Corner Radius
Item #: 77466928
Brand: Seco
Model #: 26326
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNHQ |
| Insert Size | 1204502 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | F40M |
| Coating | TiAlN/TiN |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1770 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Relief Angle | 0.000 |
| Rake Angle | 20 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Left Hand |
| Chipbreaker | M07 |
| ISO Number | SNHQ1204502TR4-M07 |
