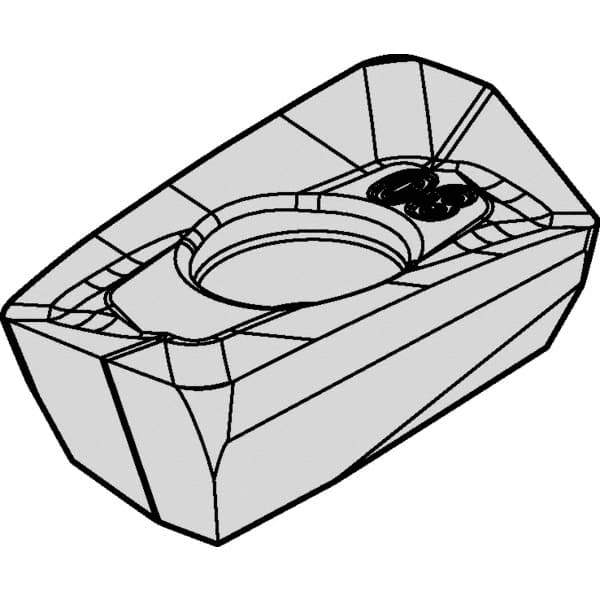

Kennametal - EC1008 Grade KC510M Carbide Milling Insert - TiAlN Finish, 0.1476" Thick, 0.8mm Corner Radius
Item #: 77459642
Brand: Kennametal
Model #: 3753417
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EC |
| Insert Size | 1008 |
| Material | Carbide |
| Manufacturer's Grade | KC510M |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.2654 |
| Length (Decimal Inch) | 0.4744 |
| Thickness (Decimal Inch) | 0.1476 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Coating Process | PVD |
| Shape | Parallelogram |
| ISO Number | EDCT10T308PDERLD |
