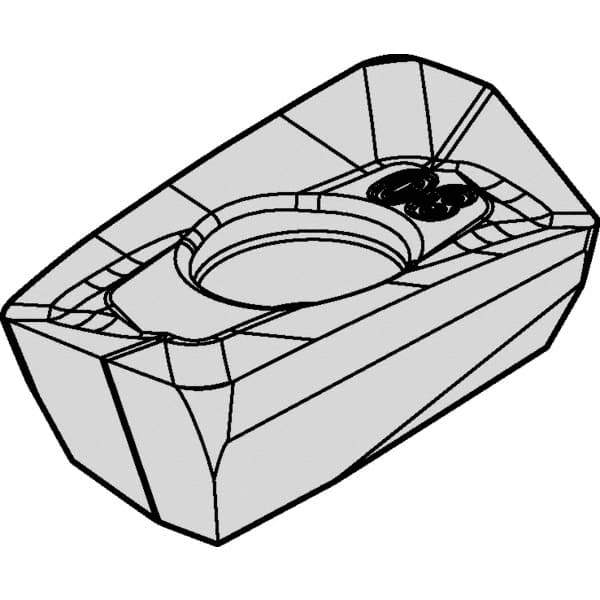

Kennametal - EC1016 Grade KC410M Carbide Milling Insert - TiB2 Finish, 0.1476" Thick, 1.59mm Corner Radius
Item #: 77459436
Brand: Kennametal
Model #: 3682777
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EC |
| Insert Size | 1016 |
| Material | Carbide |
| Manufacturer's Grade | KC410M |
| Coating | TiB2 |
| Width (Decimal Inch) | 0.2654 |
| Length (Decimal Inch) | 0.4748 |
| Thickness (Decimal Inch) | 0.1476 |
| Corner Radius (Decimal Inch) | 0.0626 |
| Corner Radius (mm) | 1.59 |
| Relief Angle | 15.000 |
| Rake Angle | 15 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Parallelogram |
| ISO Number | EDCT10T316PDFRLDJ |
