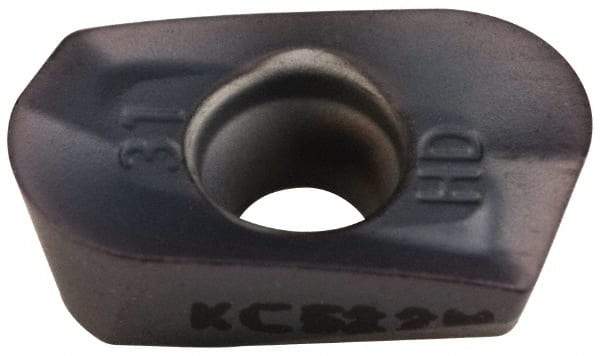

Kennametal - EP1031 HD Grade KC522M Carbide Milling Insert - TiAlN Finish, 0.148" Thick, 3.1mm Corner Radius
Item #: 77459238
Brand: Kennametal
Model #: 3642136
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EP |
| Insert Size | 1031 |
| Material | Carbide |
| Material Grade | C1 |
| Manufacturer's Grade | KC522M |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.2640 |
| Length (Decimal Inch) | 0.4530 |
| Thickness (Decimal Inch) | 0.1480 |
| Corner Radius (Decimal Inch) | 0.1220 |
| Corner Radius (mm) | 3.10 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Shape | Parallelogram |
| Chipbreaker | HD |
| ISO Number | EDPT10T331PDERHD |
