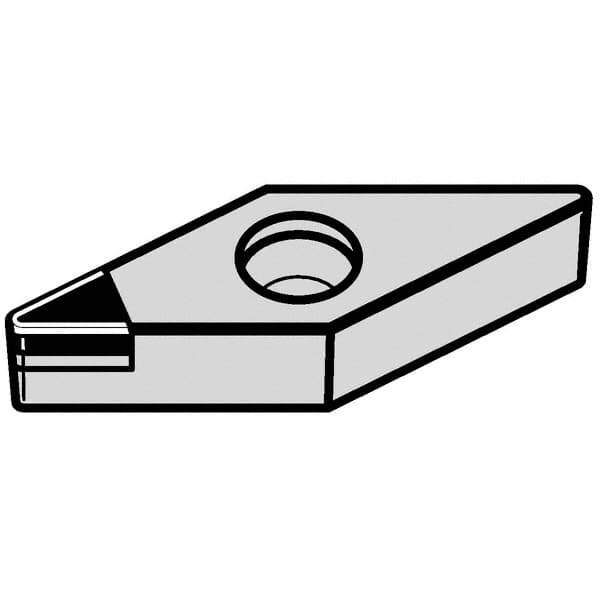

Kennametal - VBGW331 F Grade KD1400 Polycrystalline Diamond (PCD) Turning Insert - 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 77455962
Brand: Kennametal
Model #: 3659992
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | VBGW |
| Insert Size | 331 |
| Material | Polycrystalline Diamond (PCD) |
| Length (mm) | 16.61 |
| Length (Decimal Inch) | 0.6539 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KD1400 |
| Material Grade | C4 |
| Chip Breaker | F |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Rake | Positive |
| Relief Angle | 5 |
| Included Angle | 35 |
| Series | Screw-On |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0500 |
| Insert Holding Method | Screw |
| Shape | Diamond |
