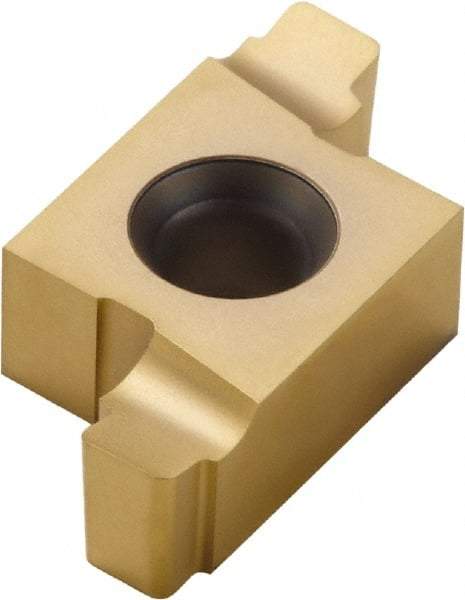

Seco - 2035520ER ST Grade CP500, 4.8mm Cutting Width Carbide Grooving Insert - 2.8mm Max Depth of Cut, Right Hand, 0.75mm Corner Radius, TiAlN/TiN Finish
Item #: 76760495
Brand: Seco
Model #: 26811
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 20ER |
| Insert Size | 20355 |
| Material | Carbide |
| Cutting Width (mm) | 4.80 |
| Cutting Width (Decimal Inch) | 0.1890 |
| Maximum Depth of Cut (mm) | 2.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.1102 |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP500 |
| Coating | TiAlN/TiN |
| Insert Hand | Right Hand |
| Insert Seat Size | 20 |
| Chipbreaker | ST |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.75 |
| Corner Radius (Decimal Inch) | 0.0295 |
| Coating Process | PVD |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Series | Snap Tap |
| Overall Width (mm) | 12.70 |
| Overall Width (Decimal Inch) | 0.5000 |
