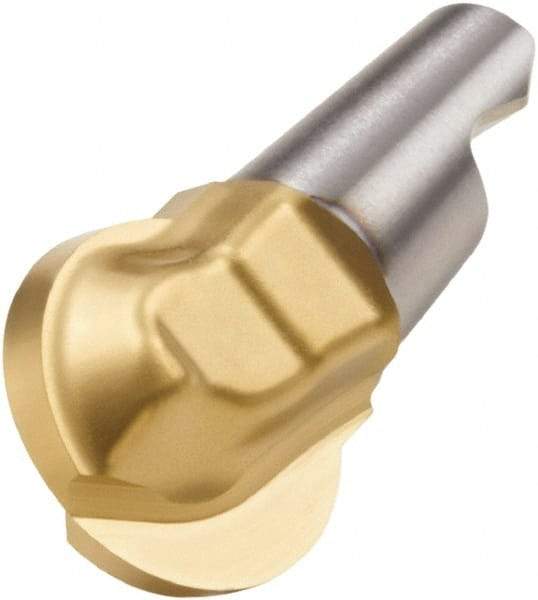

Seco - MM10 M05 Grade F30M Carbide End Milling Tip Insert - 2 Flutes, 0.472" Cutting Diam, 0.484" Depth of Cut, 0.52" Extension, 0.236" Cnr Rad
Item #: 76721653
Brand: Seco
Model #: 83492
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Series | Minimaster |
| Milling Tip Style | MM10 |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.4720 |
| Manufacturer's Grade | F30M |
| Depth of Cut (Decimal Inch) | 0.4840 |
| Number of Flutes | 2 |
| Milling Tip Full Description | Roughing End Mill |
| Corner Radius (Decimal Inch) | 0.2360 |
| Coating Process | PVD |
| Chipbreaker | M05 |
| Extension From Holder (Decimal Inch) | 0.5200 |
