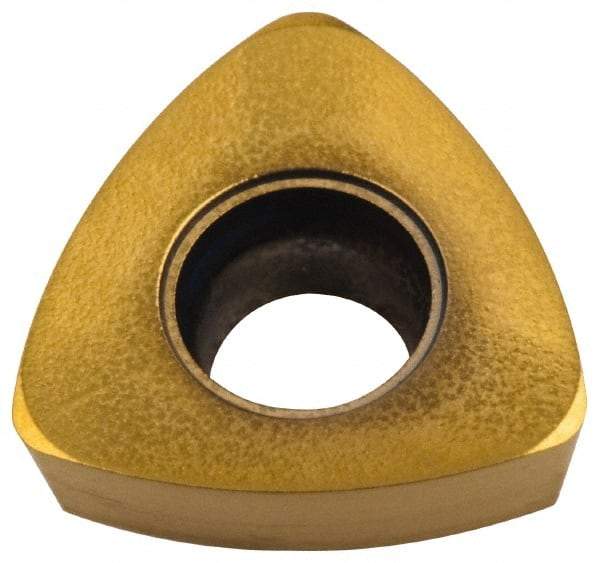

Seco - 218.19100 M06 Grade F30M Carbide Milling Insert - TiAlN/TiN Finish, 0.109" Thick, 0.278" Inscribed Circle, 0.031" Corner Radius
Item #: 76719442
Brand: Seco
Model #: 79714
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 218.19 |
| Insert Size | 100 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | F30M |
| Coating | TiAlN/TiN |
| Width (Decimal Inch) | 0.2780 |
| Inscribed Circle (Decimal Inch) | 0.2780 |
| Thickness (Decimal Inch) | 0.1090 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Relief Angle | 12.000 |
| Rake Angle | 10 |
| Coating Process | PVD |
| Included Angle | 60 |
| Shape | Trigon |
| Insert Hand | Right Hand |
| Chipbreaker | M06 |
| ISO Number | 218.19-100T-M06 |
