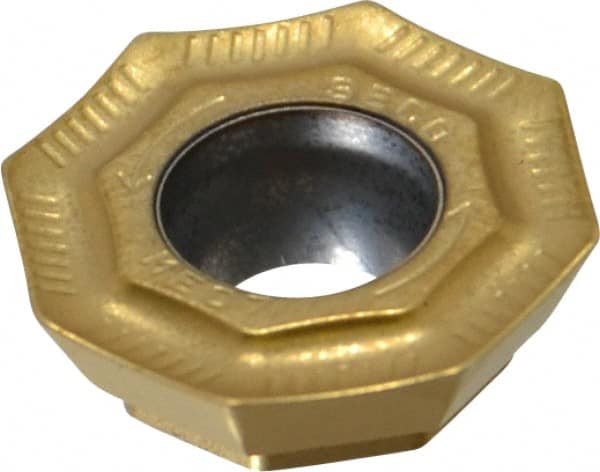

Seco - OFEX05T305TNME07 F40M Carbide Milling Insert
Item #: 76719301
Brand: Seco
Model #: 74077628
Product Specifications
| Insert Style | OFEX |
| Insert Size | 05T305 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | F40M |
| Coating | TiAlN/TiN |
| Width (Decimal Inch) | 0.5000 |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1480 |
| Relief Angle | 26.000 |
| Rake Angle | 18 |
| Coating Process | PVD |
| Included Angle | 135 |
| Shape | Octagon |
| Insert Hand | Neutral |
| Chipbreaker | ME07 |
| ISO Number | OFEX05T305TN-ME07 |
