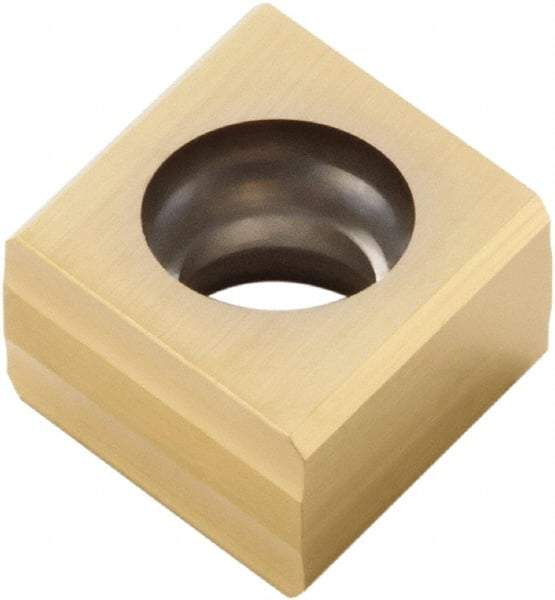

Seco - 335.181005 M10 Grade F40M Carbide Milling Insert - TiAlN/TiN Finish, 0.213" Thick
Item #: 76718691
Brand: Seco
Model #: 68058
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 335.18 |
| Insert Size | 1005 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | F40M |
| Coating | TiAlN/TiN |
| Width (Decimal Inch) | 0.3940 |
| Length (Decimal Inch) | 0.3940 |
| Thickness (Decimal Inch) | 0.2130 |
| Rake Angle | 10 |
| Coating Process | PVD |
| Shape | Diamond |
| Chipbreaker | M10 |
| ISO Number | 335.18-1005T-M10 |
