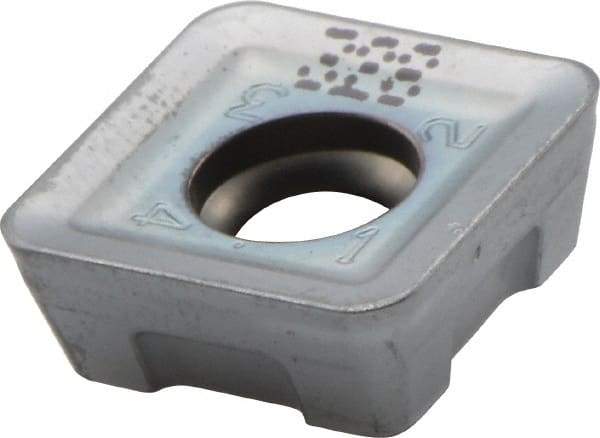

Iscar - QDMT120516 M Grade IC328 Carbide Milling Insert - TiCN Finish, 0.1969" Thick, 1.6mm Corner Radius
Item #: 76656636
Brand: Iscar
Model #: 5603737
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | QDMT |
| Insert Size | 120516 |
| Material | Carbide |
| Material Grade | C2/C3/C5/C6 |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Length (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1969 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | M |
| ISO Number | QDMT 120516PDTN-M |
