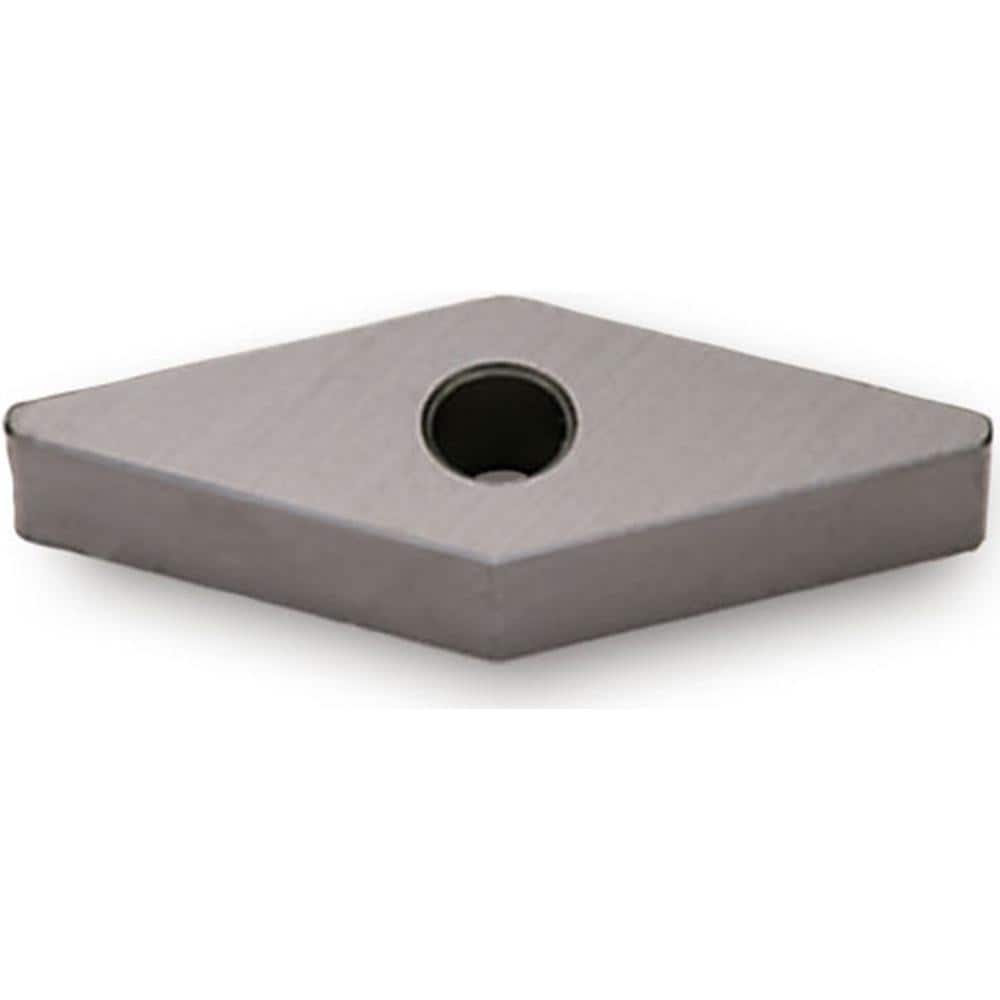

Turning Insert: VNGA332 AB20, Ceramic Al2O3 & TiCN Finish, Neutral, 0.6540″ Long, 3/8″ Inscribed Circle, 0.0310″ Corner Radius, 35.0 ° N/A Diamond, Series VNGA
Item #: 76640408
Brand: Ingersoll Cutting Tools
Model #: 5700248
Product Specifications
| Insert Style | VNGA |
| Insert Shape Code | V |
| Insert Size Code | 332 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Ceramic |
| Manufacturer Grade | AB20 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.4665 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Clamp |
| Width (Inch) | 3/8 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 35.0 |
| Relief Angle | 0 |
| Series | VNGA |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.6540 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Hardened Steel |
| Primary Workpiece Material Code | H |
| Ansi Code | VNGA332AB20 |
| Iso Code | VNGA160408 AB20 |
| Chip Breaker | A |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Coating/Finish | TiCN; Al2O3 |
