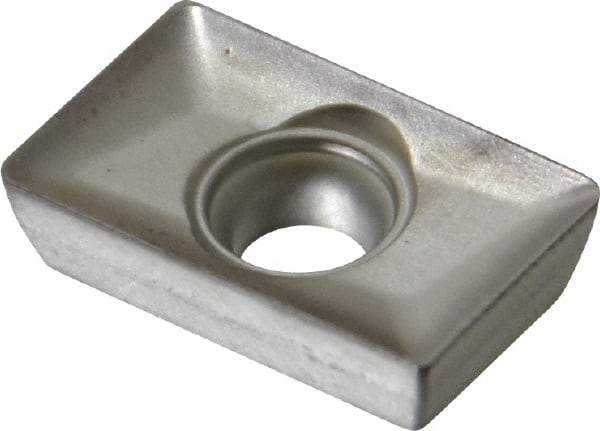

Kyocera - XPMT15T308 Grade TN100M Cermet Milling Insert - Uncoated, 5/32" Thick, 3/8" Inscribed Circle, 1/32" Corner Radius
Item #: 76628254
Brand: Kyocera
Model #: 8850484
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | XPMT |
| Insert Size | 15T308 |
| Material | Cermet |
| Manufacturer's Grade | TN100M |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.3740 |
| Length (Decimal Inch) | 0.5900 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Hole Diameter (Decimal Inch) | 0.1570 |
| Relief Angle | 15.000 |
| Shape | Rectangle |
