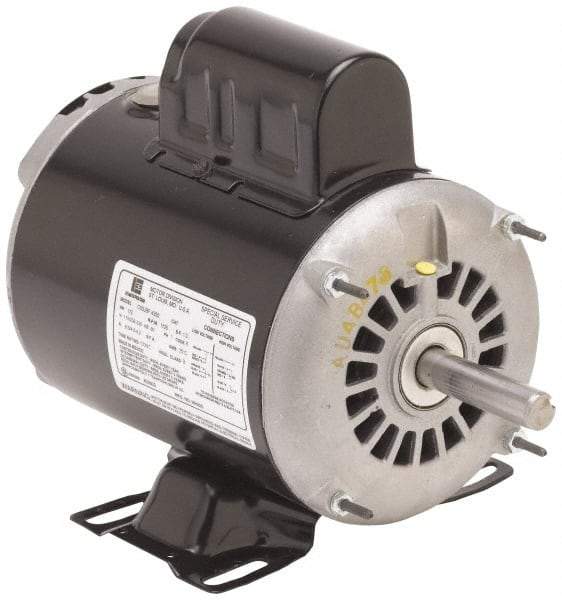

US Motors - 2 hp, ODP Enclosure, No Thermal Protection, 1,740 RPM, 115/208-230 Volt, 60 Hz, Single Phase Capacitor Start-Cap Run Motor - Size 145T Frame, Rigid Mount, 1 Speed, Ball Bearings, 21.4/12.2-107 Full Load Amps, B Class Insulation, Reversible
Item #: 76506674
Brand: US Motors
Model #: D2C2J14
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Single Phase Capacitor Start-Cap Run |
| Type of Enclosure | ODP |
| Horsepower | 2 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1740 |
| Voltage | 115/208-230 |
| Frequency Hz | 60 |
| Frame Size | 145T |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | General Purpose |
| Full Load Amperage | 21.4/12.2-107 |
| Insulation Class | B |
| Overall Length (Decimal Inch) | 14.3000 |
| Shaft Diameter x Length (Inch) | 5/8 x 1-7/8 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
