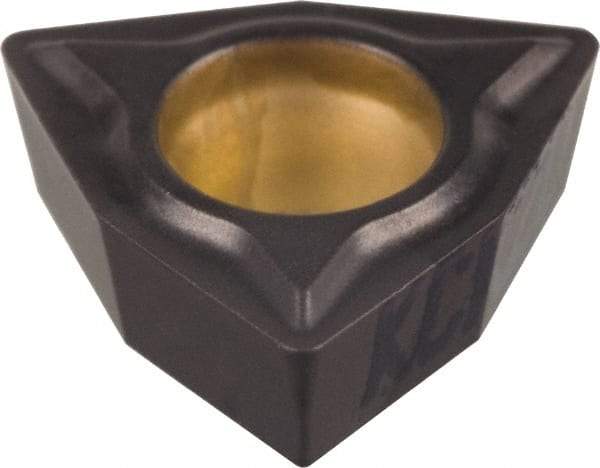

Kennametal - WPMT21.51 LF Grade KCK20 Carbide Turning Insert - TiCN/Al2O3 Finish, 80° Trigon, 1/4" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 76368018
Brand: Kennametal
Model #: 3755528
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WPMT |
| Insert Size | 21.51 |
| Material | Carbide |
| Length (mm) | 4.34 |
| Length (Decimal Inch) | 0.1709 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KCK20 |
| Coating | TiCN/Al2O3 |
| Material Grade | C2/C3 |
| Chip Breaker | LF |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Rake | Positive |
| Rake Angle | 5 |
| Relief Angle | 11 |
| Coating Process | CVD |
| Primary Workpiece Material | K |
| Included Angle | 80 |
| Series | Screw-On |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0500 |
| Insert Holding Method | Screw |
| Shape | Trigon |
