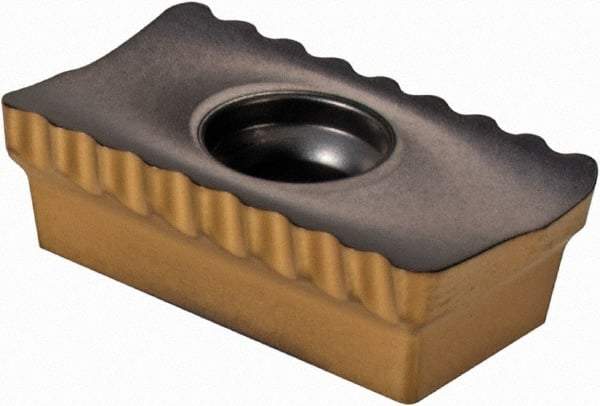

Iscar - P290 ACKT1806 PDRFW Grade IC830 Carbide Milling Insert - TiAlN/TiN Finish, 0.236" Thick, 1.19mm Corner Radius
Item #: 76320282
Brand: Iscar
Model #: 5606694
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | P290 ACKT |
| Insert Size | 1806 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/TiN |
| Width (Decimal Inch) | 0.4210 |
| Length (Decimal Inch) | 0.7280 |
| Thickness (Decimal Inch) | 0.2360 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (mm) | 1.19 |
| Relief Angle | 7.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Chipbreaker | PDRFW |
| Manufacturers Catalog Number | P290 ACKT 1806PDR-FW |
