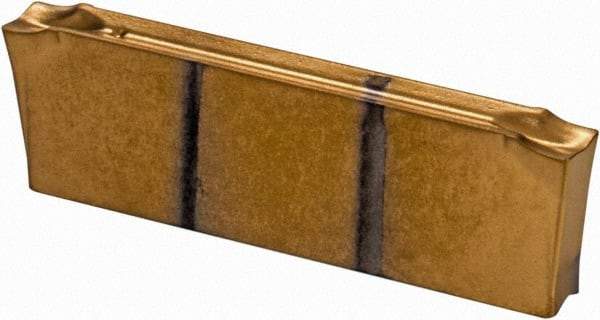

Iscar - DGN2202 J IC1028 Grade, 0.087" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.008" Cnr Rad, TiN/TiAlN Coated, Single End
Item #: 75772160
Brand: Iscar
Model #: 6003041
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | DGN |
| Insert Size | 2202 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 2.21 |
| Cutting Width (Decimal Inch) | 0.0870 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC1028 |
| Coating | TiN/TiAlN |
| Series | Do-Grip |
| Relief Angle | 7 |
| Chipbreaker | J |
| Maximum Depth of Cut (mm) | 18.01 |
| Maximum Depth of Cut (Decimal Inch) | 0.7090 |
| Full Radius | No |
| Multi-Use Application | Facing; Grooving |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.20 |
| Insert Hand | Neutral |
| Insert Holding Method | Self Grip |
| Manufacturers Catalog Number | DGN 2202J |
