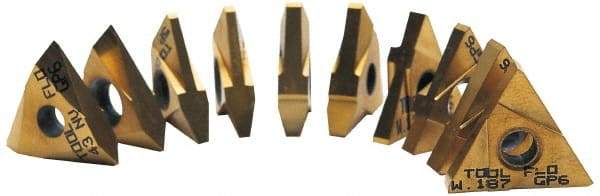

Tool-Flo - 32TNMA Grade GP3, 3.18mm Cutting Width Carbide Grooving Insert - 0.15" Max Depth of Cut, Neutral, TiN Finish
Item #: 75641290
Brand: Tool-Flo
Model #: C0812500J5R
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMA |
| Insert Size | 32 |
| Material | Carbide |
| Cutting Width (mm) | 3.18 |
| Cutting Width (Decimal Inch) | 0.1252 |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Material Grade | Micrograin |
| Manufacturer's Grade | GP3 |
| Coating | TiN |
| Insert Hand | Neutral |
| Relief Angle | 2 |
| Multi-Use Tool | No |
| Coating Process | PVD |
| Overall Width (Decimal Inch) | 0.1270 |
