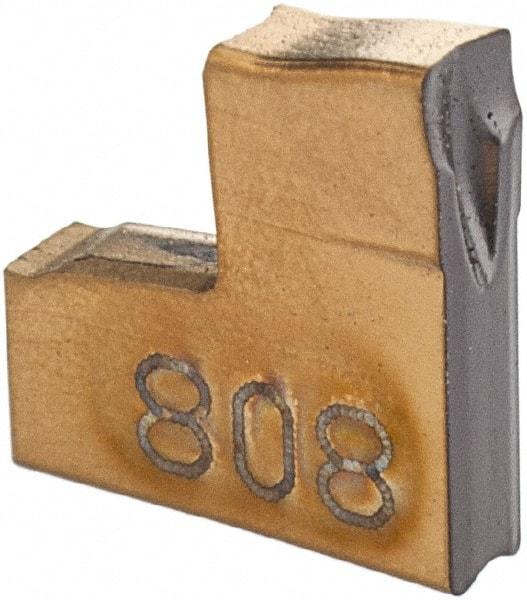

Iscar - TAG2 IC808 Grade, 0.0787" Cutting Width, Carbide Cutoff Insert - 6° Left Hand Lead Angle, 0.0079" Cnr Rad, TiAlN/AlTiN/TiN Coated
Item #: 75629923
Brand: Iscar
Model #: 6003632
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TAG |
| Insert Size | 2 |
| Lead Angle Direction | Left Hand |
| Lead Angle | 6 |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Series | Tang-Grip |
| Relief Angle | 7 |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Overall Width (mm) | 2.00 |
| Overall Width (Decimal Inch) | 0.0787 |
