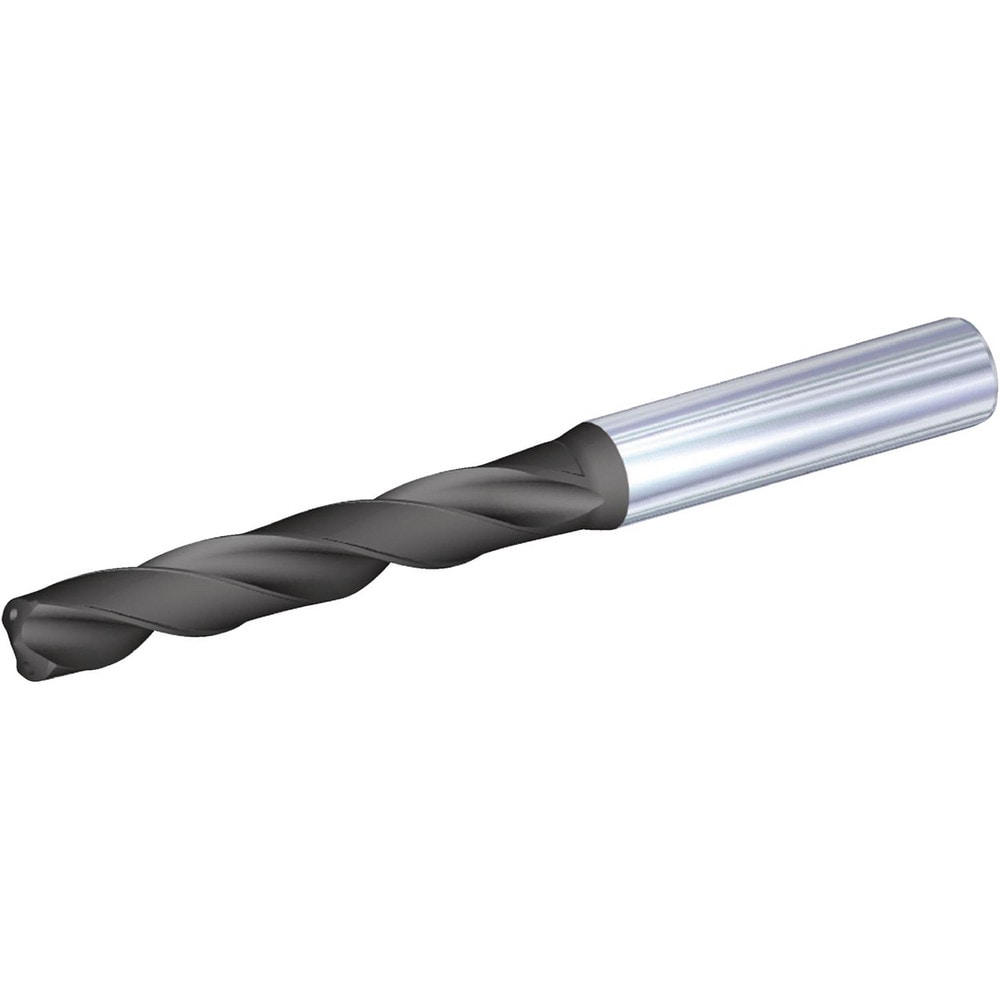

Brand: Widia / Part #: 4158810
Item #: 99829988
Brand: Widia
Model #: 4158810
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.1660 |
| Drill Bit Size (Wire) | #19 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | AlCrN |
| Drill Point Angle (Degrees) | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (Decimal Inch) | 2.9134 |
| Flute Length (Decimal Inch) | 1.4173 |
| Series | TDS412 |
| Tool Application | Drilling |
| Flute Length x Diamter Ratio | 7 |
| Flute By Diameter Ratio | 7xD |
| Maximum Drilling Depth (Decimal Inch) | 1.1417 |
| Shank Length (Decimal Inch) | 1.4173 |
| Number of Flats | 2 |
| Drill Point Length (Decimal Inch) | 0.0273 |
| Drill Bit Diameter Tolerance | 0.000200 to 0.000600 in |
| Tool Performance | High Performance |
| Double Margin | Yes |
| Drill Bit Grade | WK15PD |
| Material Grade | WK15PD |
