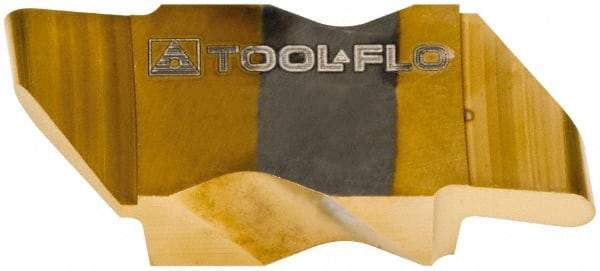

Tool-Flo - 3047FLRP Grade GP3, 2.39mm Cutting Width Carbide Grooving Insert - 4.57mm Max Depth of Cut, Right Hand, 0.047" Corner Radius, TiN Finish
Item #: 75566026
Brand: Tool-Flo
Model #: 593847RJ5R
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FLRP |
| Insert Size | 3047 |
| Material | Carbide |
| Cutting Width (mm) | 2.39 |
| Cutting Width (Decimal Inch) | 0.0941 |
| Maximum Depth of Cut (mm) | 4.57 |
| Maximum Depth of Cut (Decimal Inch) | 0.1799 |
| Material Grade | Micrograin |
| Manufacturer's Grade | GP3 |
| Coating | TiN |
| Insert Hand | Right Hand |
| Cutting Height (Decimal Inch) | 0.3440 |
| Lead Angle | 3 |
| Relief Angle | 55 |
| Multi-Use Tool | No |
| Corner Radius (Decimal Inch) | 0.0470 |
| Coating Process | PVD |
| Series | Flo-Lock |
| Rake Angle | 5 |
| Rake | Positive |
| Overall Width (Decimal Inch) | 0.1950 |
