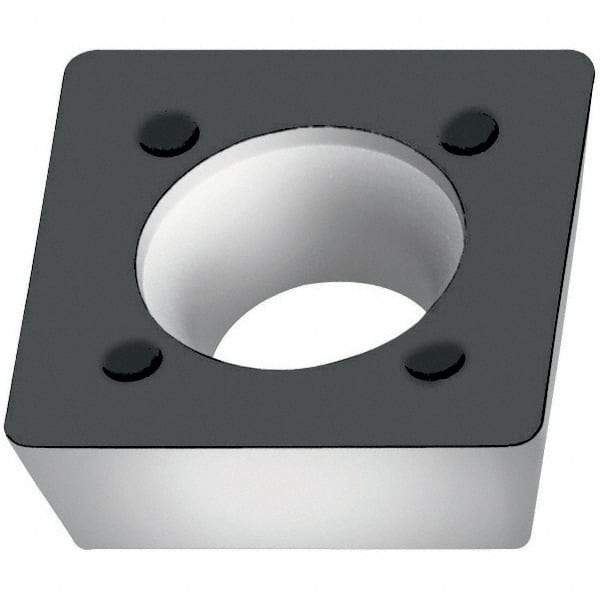

Walter - SPMW120408 A57 Grade WKM Carbide Milling Insert - 0.1874" Thick, 1/2" Inscribed Circle, 0.8mm Corner Radius
Item #: 75444489
Brand: Walter
Model #: 5004936
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPMW |
| Insert Size | 120408 |
| Material | Carbide |
| Manufacturer's Grade | WKM |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Rake | Positive |
| Shape | Square |
| Chipbreaker | A57 |
| Manufacturers Catalog Number | SPMW120408-A57 |
