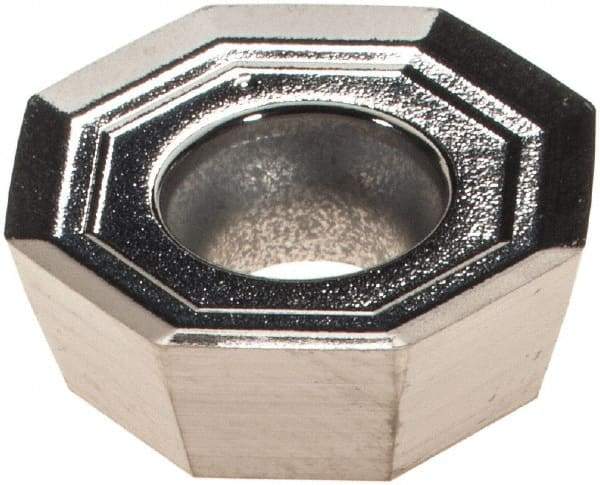

Walter - ODHT0605 G88 Grade WK10 Carbide Milling Insert - Uncoated, 0.2189" Thick, 5/8" Inscribed Circle, 0.8mm Corner Radius
Item #: 75444240
Brand: Walter
Model #: 5004795
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ODHT |
| Insert Size | 0605 |
| Material | Carbide |
| Material Grade | N10 |
| Manufacturer's Grade | WK10 |
| Coating | Uncoated |
| Length (Decimal Inch) | 0.2362 |
| Inscribed Circle (Decimal Inch) | 0.6252 |
| Thickness (Decimal Inch) | 0.2189 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Rake | Positive |
| Shape | Octagon |
| Insert Hand | Neutral |
| Chipbreaker | G88 |
| Manufacturers Catalog Number | ODHT0605ZZN-G88 |
