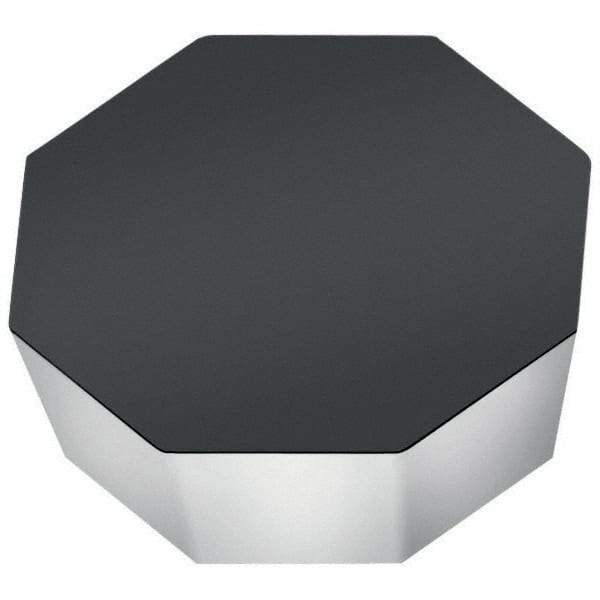

Walter - OPHN0504 A57 Grade WSN10 Ceramic Milling Insert - Uncoated, 0.1874" Thick, 1/2" Inscribed Circle, 0.4mm Corner Radius
Item #: 75442913
Brand: Walter
Model #: 5004118
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | OPHN |
| Insert Size | 0504 |
| Material | Ceramic |
| Material Grade | K20 |
| Manufacturer's Grade | WSN10 |
| Coating | Uncoated |
| Length (Decimal Inch) | 0.1969 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Rake | Positive |
| Shape | Octagon |
| Insert Hand | Neutral |
| Chipbreaker | A57 |
| Manufacturers Catalog Number | OPHN0504ZZN-A57 |
