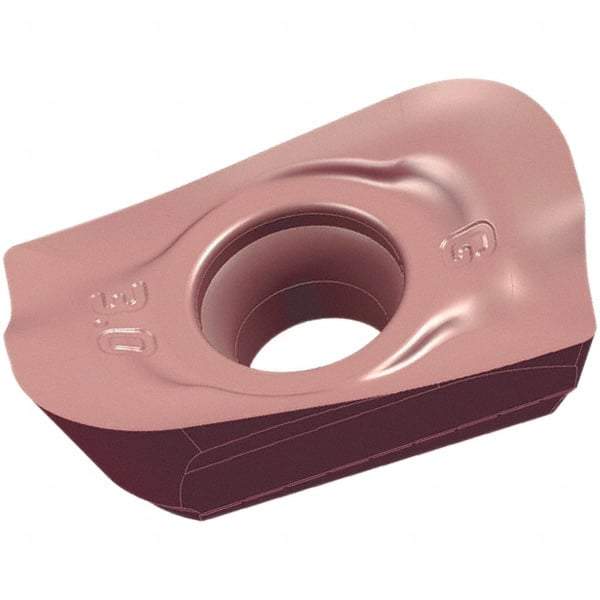

Walter - ADHT120440 G88 Grade WXN15 Carbide Milling Insert - TiCN Plus Finish, 0.1874" Thick, 4mm Corner Radius
Item #: 75437905
Brand: Walter
Model #: 5194604
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ADHT |
| Insert Size | 120440 |
| Material | Carbide |
| Material Grade | N15 |
| Manufacturer's Grade | WXN15 |
| Coating | TiCN Plus |
| Width (Decimal Inch) | 0.3307 |
| Length (Decimal Inch) | 0.5354 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Corner Radius (mm) | 4.00 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Parallelogram |
| Insert Hand | Left Hand |
| Chipbreaker | G88 |
| Manufacturers Catalog Number | ADHT120440L-G88 |
