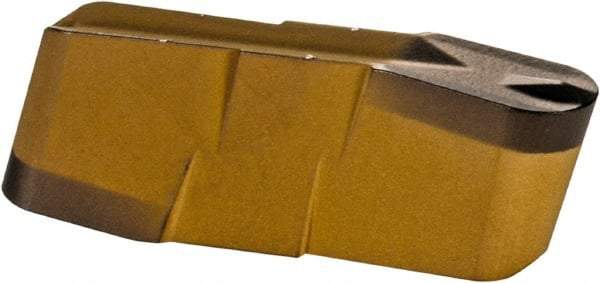

Iscar - 318159GIP Grade IC8250, 3.18mm Cutting Width Carbide Grooving Insert - 12.19mm Max Depth of Cut, Neutral, 1.6mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 75190280
Brand: Iscar
Model #: 6405239
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIP |
| Insert Size | 318159 |
| Material | Carbide |
| Cutting Width (mm) | 3.18 |
| Cutting Width (Decimal Inch) | 0.1250 |
| Maximum Depth of Cut (mm) | 12.19 |
| Maximum Depth of Cut (Decimal Inch) | 0.4800 |
| Manufacturer's Grade | IC8250 |
| Coating | TiCN/Al2O3/TiN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.00 |
| Cutting Height (Decimal Inch) | 0.1970 |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Slotting |
| Corner Radius (mm) | 1.60 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Coating Process | CVD |
| Overall Length (mm) | 15.29 |
| Overall Length (Decimal Inch) | 0.6020 |
| Series | Cut Grip |
| ISO Number | GIP 3.18-1.59 |
| Manufacturers Catalog Number | GIP 3.18-1.59 |
