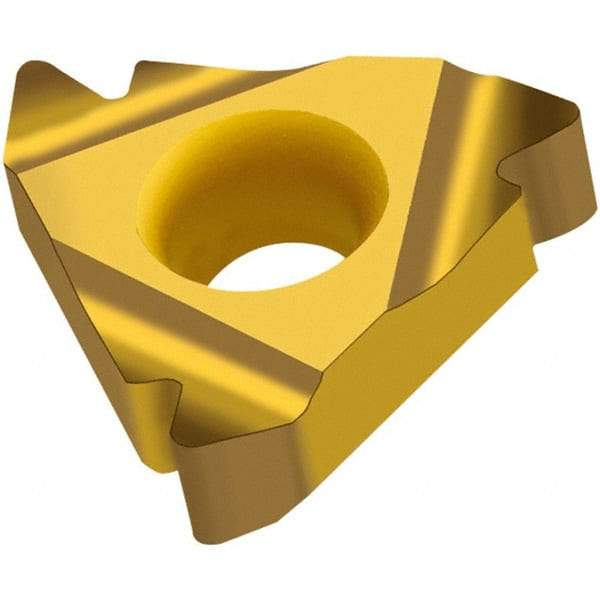

Walter - External Right Hand M (Metric 60°, MF 60°, UN 60°, UNC 60°, UNF 60°) Laydown Threading Insert - Grade WXP20, TiN Coated 9.53mm Inscribed Circle
Item #: 75187021
Brand: Walter
Model #: 5894184
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Hand | Right Hand |
| Thread Type | External |
| Thread Standard | M (Metric 60 ), MF 60 , UN 60 , UNC 60 , UNF 60 |
| Manufacturer's Grade | WXP20 |
| External Threads Per Inch | 0.000 ;8 to 14 |
| External Pitch (mm) | 1.75 to 3 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (mm) | 9.53 |
| Thickness (Decimal Inch) | 0.0000 |
| Thickness (mm) | 0.00 |
| Included Angle of Threading Tip | 60 |
| Hole Diameter (mm) | 3.85 |
| Hole Diameter (Decimal Inch) | 0.1520 |
| Coating | TiN |
| Coating Process | PVD |
| Corner Radius (mm) | 0.27 |
| Corner Radius (Decimal Inch) | 0.0110 |
| Chipbreaker | A27 |
| Number of Teeth Per Side | 1 |
| Series | NTS_E_TEIL_60 |
