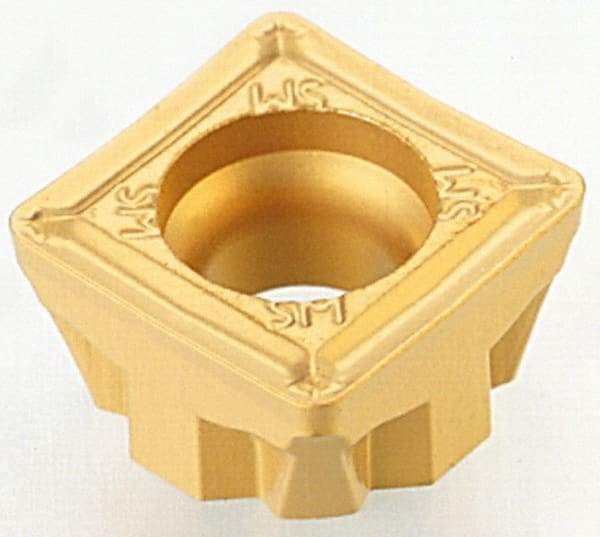

Iscar - S45MT1106 N Grade IC928 Carbide Milling Insert - TiAlN Finish, 0.236" Thick, 0.4646" Inscribed Circle, 0.78mm Corner Radius
Item #: 74829516
Brand: Iscar
Model #: 5602549
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | S45MT |
| Insert Size | 1106 |
| Material | Carbide |
| Material Grade | C1/C2/C5/C6 |
| Manufacturer's Grade | IC928 |
| Coating | TiAlN |
| Inscribed Circle (Decimal Inch) | 0.4646 |
| Thickness (Decimal Inch) | 0.2360 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.78 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | N |
| Maximum Depth of Cut (Decimal Inch) | 0.2050 |
| ISO Number | S45MT 1106AP-N |
