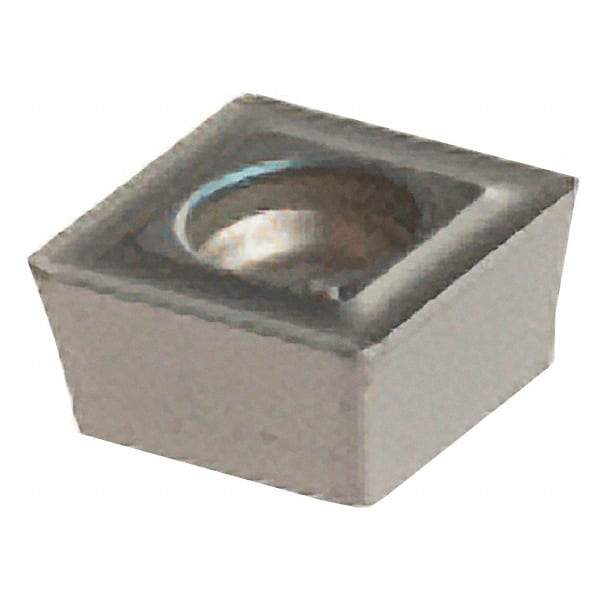

Iscar - SOMX050204 DT Grade IC9080 Carbide Indexable Drill Insert - TiCN/Al2O3/TiN Finish, Square, 5.4mm Inscribed Circle
Item #: 74773755
Brand: Iscar
Model #: 5506611
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SOMX |
| Insert Size | 050204 |
| Material | Carbide |
| Manufacturer's Grade | IC9080 |
| Inscribed Circle (mm) | 5.40 |
| Inscribed Circle (Decimal Inch) | 0.2126 |
| Thickness (mm) | 2.40 |
| Thickness (Decimal Inch) | 0.0945 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Square |
| Included Angle | 90 |
| Coating | TiCN/Al2O3/TiN |
| Coating Process | CVD |
| Chipbreaker | DT |
