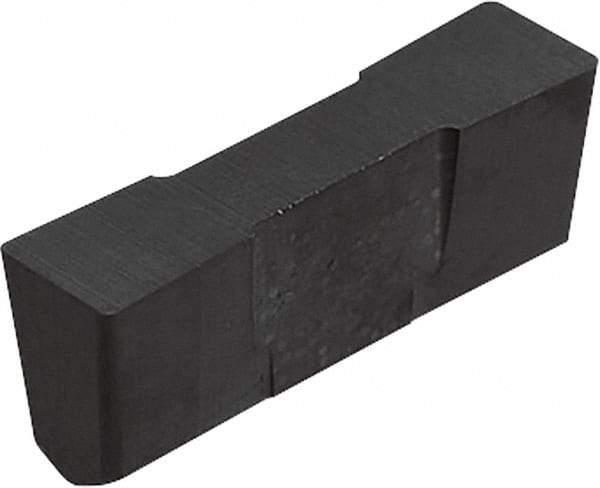

Kyocera - 312GH Grade TC40, 5/16" Cutting Width Cermet Grooving Insert - 0.492" Max Depth of Cut, Right Hand, 0.38mm Corner Radius, Uncoated
Item #: 74538455
Brand: Kyocera
Model #: 8801370
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | GH |
| Insert Size | 312 |
| Material | Cermet |
| Cutting Width (Inch) | 5/16 |
| Maximum Depth of Cut (Decimal Inch) | 0.4920 |
| Manufacturer's Grade | TC40 |
| Coating | Uncoated |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (Decimal Inch) | 0.2960 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.38 |
| Coating Process | Uncoated |
| Overall Length (mm) | 20.00 |
| Series | KGH |
| Rake | Positive |
| ISO Number | GH312R15 |
