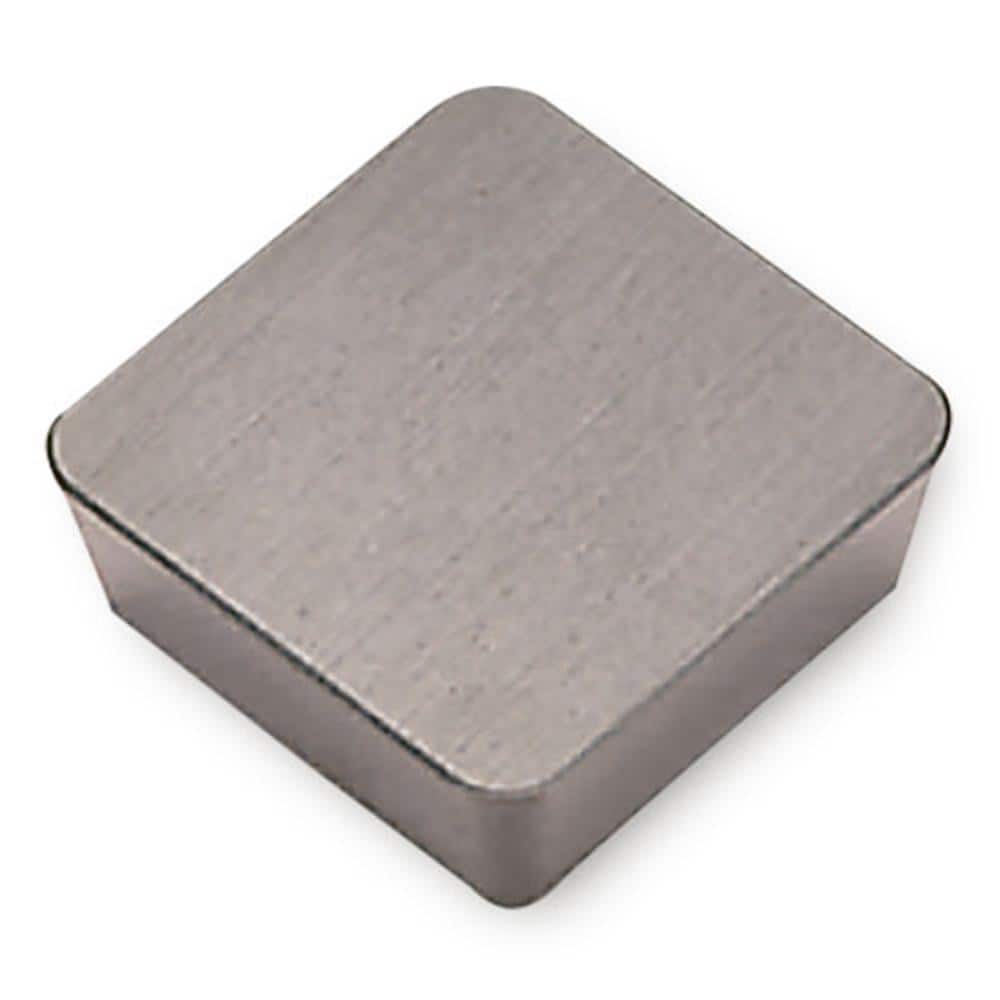

Turning Insert: SPG632 C-6, Solid Carbide Uncoated Finish, Neutral, 0.7190″ Long, 3/4″ Inscribed Circle, 0.0310″ Corner Radius, 90.0 ° N/A Square, Series SPG
Item #: 74341355
Brand: Ingersoll Cutting Tools
Model #: 5501951
Product Specifications
| Insert Style | SPG |
| Insert Shape Code | S |
| Insert Size Code | 632 |
| Insert Shape | Square |
| Clearance Code | P |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | P20 |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Inscribed Circle (Inch) | 3/4 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Insert Holding Method | Clamp |
| Width (Inch) | 3/4 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 90.0 |
| Relief Angle | 11 |
| Series | SPG |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.7190 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Ansi Code | SPG632C6 |
| Iso Code | SPGN190408. P20 |
| Width (Decimal Inch - 4 Decimals) | 0.7500 |
| Coating/Finish | Uncoated |
