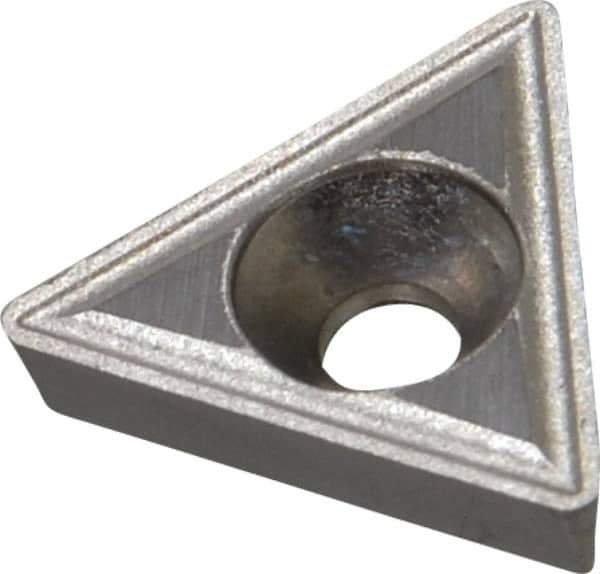

Hertel - TPGH322 Grade HT630B Cermet Boring Insert - Uncoated, 60° Triangle, 11° Relief Angle, 3/8" Inscr Circle, 1/8" Thick, 1/32" Corner Radius
Item #: 74159872
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal. It can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Material | Cermet |
| Insert Style | TPGH |
| Insert Size | 322 |
| Material Grade | C8 |
| Manufacturer's Grade | HT630B |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1270 |
| Thickness (Inch) | 1/8 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Coating | Uncoated |
| Relief Angle | 11 |
| Included Angle | 60 |
| Insert Holding Method | Screw |
| Shape | Triangle |
