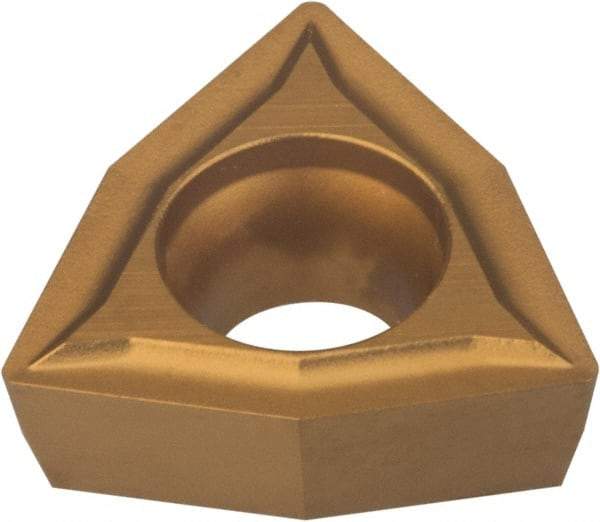

Hertel - WPMT 32.51 GP HP210B Grade Carbide Boring Insert - Trigon, 80° Incl Angle, 3/8" Inscr Circle, 5/32" Thick, 1/64" Cnr Rad
Item #: 74159831
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | WPMT |
| Insert Size | 32.51 |
| Material Grade | C5 |
| Manufacturer's Grade | HP210B |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1563 |
| Thickness (Inch) | 5/32 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Coating | TiN/TiC/TiCN/TiN |
| Chipbreaker | GP |
| Relief Angle | 11 |
| Included Angle | 80 |
| Coating Process | CVD |
| Insert Holding Method | Screw |
| Shape | Trigon |
