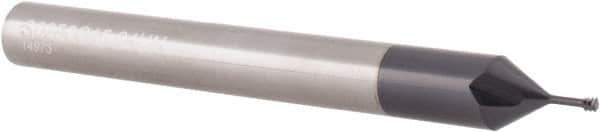

Carmex - M5x0.80 Thread, 1/4" Shank Diam, TiAlN Coating, Solid Carbide Straight Flute Thread Mill - 3 Flutes, 2-1/2" OAL
Item #: 74048125
Brand: Carmex
Model #: S0250C630.8ISO
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and commonly used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Pitch (mm) | 0.80 |
| Thread Size (mm) | M5x0.80 |
| Material | Solid Carbide |
| Thread Type | Internal |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Number of Flutes | 3 |
| Cutting Diameter (Decimal Inch) | 0.1500 |
| Finish/Coating | TiAlN |
| Length of Cut (Decimal Inch) | 0.6300 |
| Thread Standard | Metric Coarse |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 2.5000 |
| Through Coolant | No |
| Shank Length (Decimal Inch) | 1.8700 |
| Material Grade | MT7 |
| Thread Mill Type | Mini |
