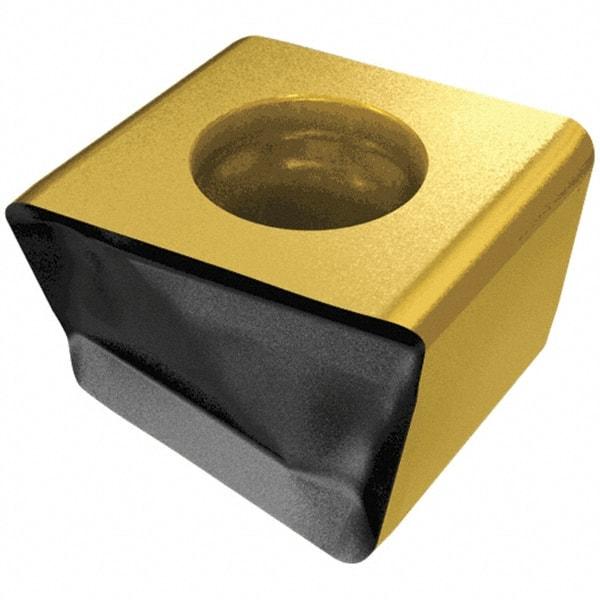

Iscar - HTP LNHT1006 ER Grade IC330 Carbide Milling Insert - TiCN/TiN Finish, 0.3909" Thick, 1mm Corner Radius
Item #: 74009192
Brand: Iscar
Model #: 5606360
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HTP LNHT |
| Insert Size | 1006 |
| Material | Carbide |
| Manufacturer's Grade | IC330 |
| Coating | TiCN/TiN |
| Width (Decimal Inch) | 0.2559 |
| Length (Decimal Inch) | 0.4134 |
| Thickness (Decimal Inch) | 0.3909 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Relief Angle | 0.000 |
| Rake Angle | 29 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Chipbreaker | ER |
| ISO Number | HTP LNHT 1006ER |
