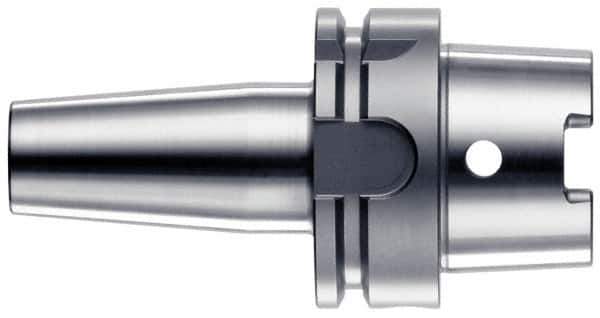

Bilz - 1/2" Hole Diam, HSK63A Taper Shank Shrink Fit Tool Holder & Adapter - 160.02mm Projection, 27mm Nose Diam, 46.99mm Clamping Depth, 18,000 RPM, Through Coolant
Item #: 73966939
Brand: Bilz
Model #: 9079247
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | HSK63A |
| Hole Diameter (Decimal Inch) | 0.5000 |
| Hole Diameter (mm) | 12.70 |
| Hole Diameter (Inch) | 1/2 |
| Projection (mm) | 160.02 |
| Projection (Decimal Inch) | 6.3000 |
| Nose Diameter (mm) | 27.00 |
| Nose Diameter (Decimal Inch) | 1.0630 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 46.99 |
| Clamping Depth (Decimal Inch) | 1.8500 |
| Balanced to (RPM) | 18000 |
