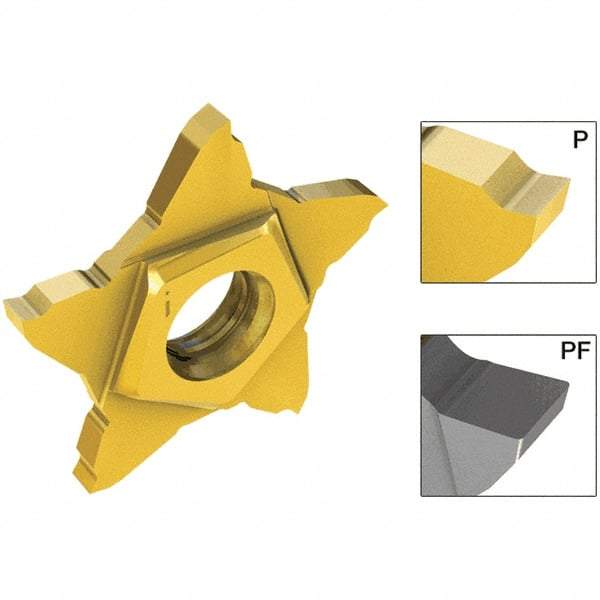

Iscar - PENTA24N150 P IC1008 Grade, 0.0591" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.002" Cnr Rad, TiAlN/TiN Coated
Item #: 73672388
Brand: Iscar
Model #: 6003384
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | PENTA |
| Insert Size | 24N150 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 1.50 |
| Cutting Width (Decimal Inch) | 0.0591 |
| Material Grade | C1/C2/C3/C5/C6 |
| Manufacturer's Grade | IC1008 |
| Coating | TiAlN/TiN |
| Series | PentaCut |
| Chipbreaker | P |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Full Radius | No |
| Multi-Use Application | Grooving |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0020 |
| Corner Radius (mm) | 0.05 |
| Insert Holding Method | Screw |
| Overall Width (mm) | 4.00 |
| Overall Width (Decimal Inch) | 0.1575 |
| Manufacturers Catalog Number | PENTA 24N150P005 |
