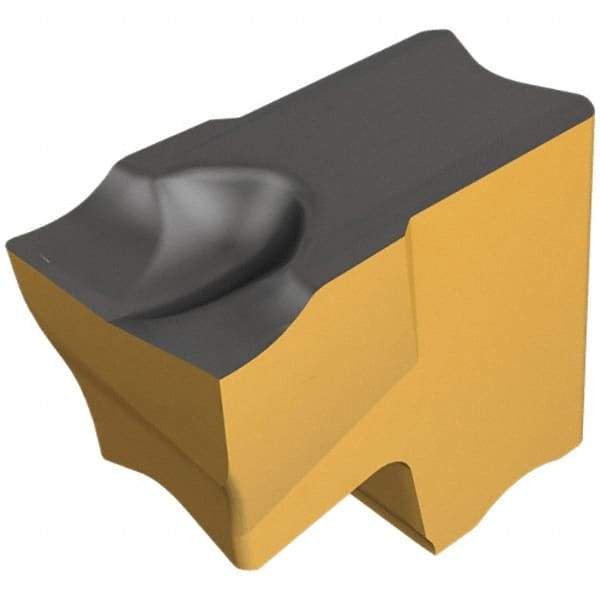

Iscar - TAG1.4 IC808 Grade, 0.0551" Cutting Width, Carbide Cutoff Insert - 8° Right Hand Lead Angle, 0.0063" Cnr Rad, TiAlN/AlTiN/TiN Coated
Item #: 73390551
Brand: Iscar
Model #: 6004466
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TAG |
| Insert Size | 1.4 |
| Lead Angle Direction | Right Hand |
| Lead Angle | 8 |
| Cutting Width (mm) | 1.40 |
| Cutting Width (Decimal Inch) | 0.0551 |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Series | Tang-Grip |
| Relief Angle | 7 |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0063 |
| Corner Radius (mm) | 0.16 |
| Overall Width (mm) | 1.40 |
| Overall Width (Decimal Inch) | 0.0551 |
