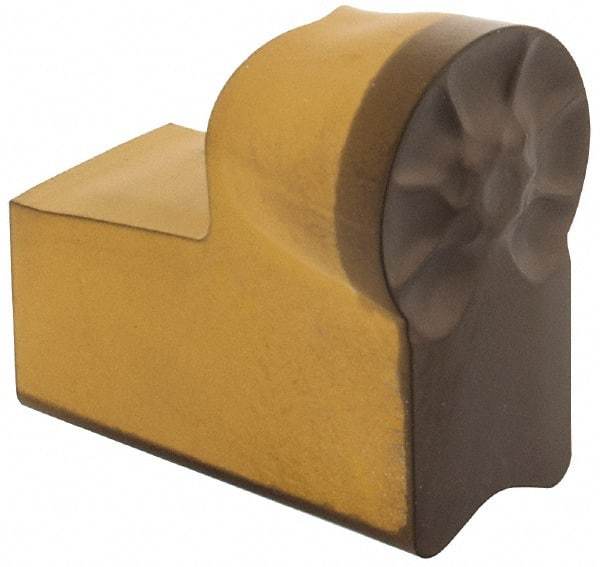

Iscar - 840TAGB Y Grade IC8250, 8mm Cutting Width Carbide Grooving Insert - 4mm Max Depth of Cut, 4mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 73371452
Brand: Iscar
Model #: 6405138
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TAGB |
| Insert Size | 840 |
| Material | Carbide |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Manufacturer's Grade | IC8250 |
| Coating | TiCN/Al2O3/TiN |
| Cutting Direction | Neutral |
| Lead Angle | 0 |
| Chipbreaker | Y |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Turning |
| Corner Radius (mm) | 4.00 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Coating Process | PVD |
| Series | Sumo-Grip |
| Manufacturers Catalog Number | TAGB 840Y |
