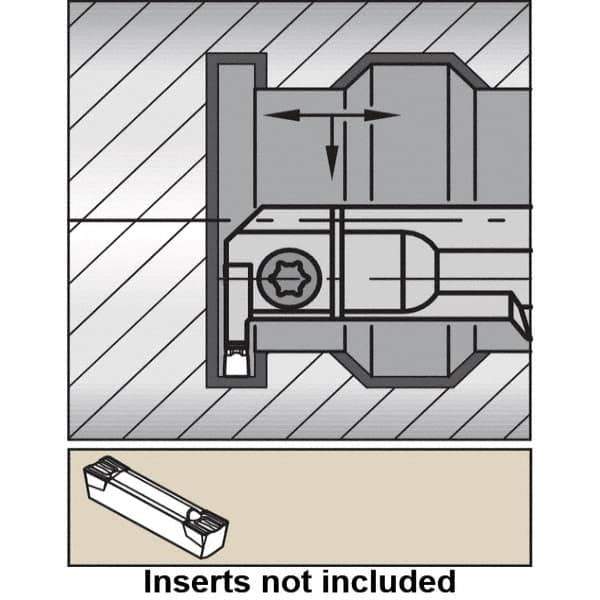

Kennametal - A-A4E, Right Hand, 0.63" Max Depth of Cut, 0.236" Min Groove Width, Indexable Grooving Tool Holder - A4 Insert Compatibility, 2" Shank Width, 12" OAL, Through Coolant
Item #: 73011884
Brand: Kennametal
Model #: 2263200
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Minimum Groove Width (Decimal Inch) | 0.2360 |
| Overall Length (Decimal Inch) | 12.0000 |
| Toolholder Style | A-A4E |
| Insert Compatibility | A4 |
| Shank Width/Diameter (Decimal Inch) | 2.0000 |
| Series | A4 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Insert Seat Size | 6 |
| Minimum Hole Diameter (Decimal Inch) | 2.5590 |
| Maximum Hole Depth (Decimal Inch) | 3.9400 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.3780 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Toolholder Material | Steel |
