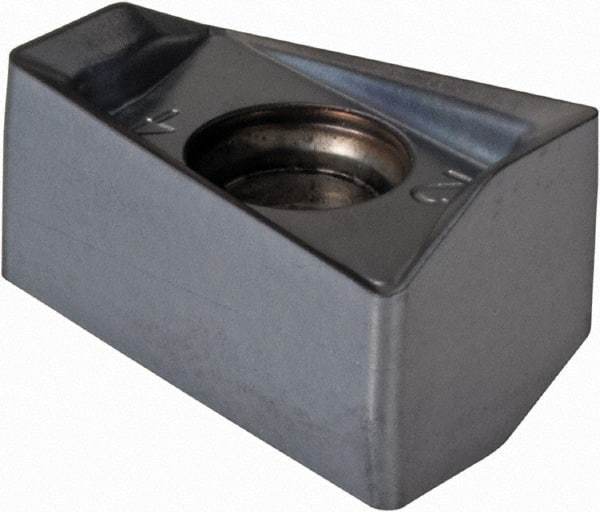

Iscar - H490 ANKX170608 PNTR Grade IC328 Carbide Milling Insert - TiCN Finish, 0.409" Thick, 0.79mm Corner Radius
Item #: 72998982
Brand: Iscar
Model #: 5605448
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | H490 ANKX |
| Insert Size | 170608 |
| Material | Carbide |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Width (Decimal Inch) | 0.4410 |
| Length (Decimal Inch) | 0.6570 |
| Thickness (Decimal Inch) | 0.4090 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.79 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Chipbreaker | PNTR |
| Manufacturers Catalog Number | H490 ANKX 170608PNTR |
